CY-5000W-A3-1

Inverter parameters

1. Inverter model: 5KW 48V
2. Rated output power: 5KVA/5KW
3. Output voltage waveform: pure sine wave
4. Output voltage regulation: 230Vac±5%
5. Output frequency: 60Hz or 50Hz

Inquire Now

Product Overview

Specification

Application

FAQ

Model	A3-1
Battery capacity	Lithium Iron Phosphate 16S1P 102AH/51.2V (5222WH 5.2 kWh electricity)
Inverter parameters	1. Inverter model: 5KW 48V 2. Rated output power: 5KVA/5KW 3. Output voltage waveform: pure sine wave 4. Output voltage regulation: 230Vac±5% 5. Output frequency: 60Hz or 50Hz
Public facility charging mode	1. Charging current (UPS) @ standard input voltage: 60A 2. Floating charging voltage: 54Vdc
Solar charging mode	1. Power range: <5.5KW 2. PV charging current: 80A 3. Efficiency: 98% maximum 4. PV array MPPT voltage range: 120-450Vdc
Size	385535335mm
Material	Sheet Metal
Color	White and black (customizable colors)
Product weight	About 60KG
Packaging size	660500600mm

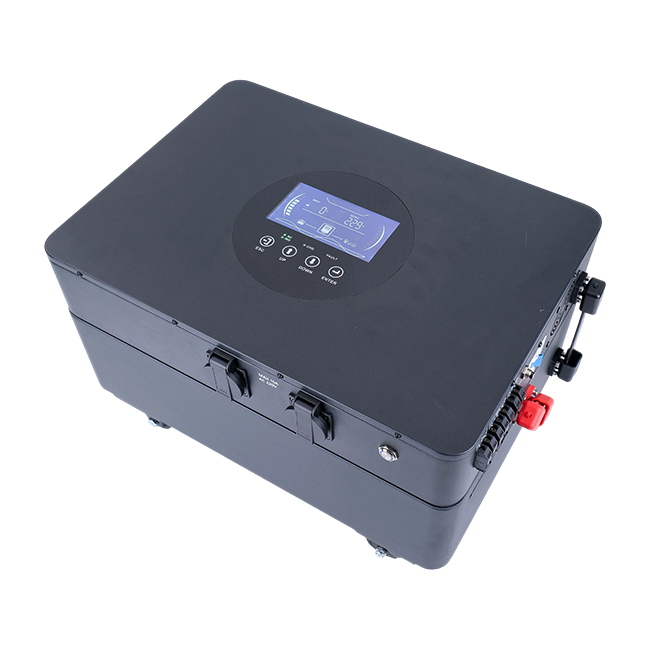

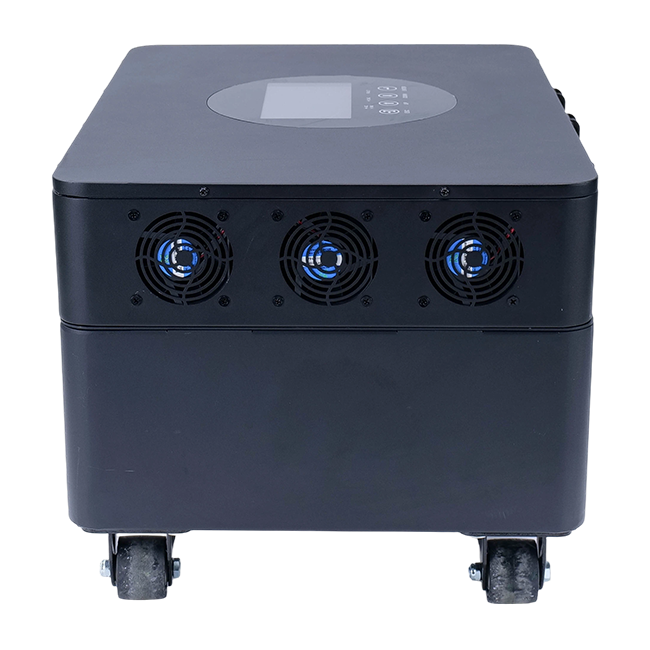

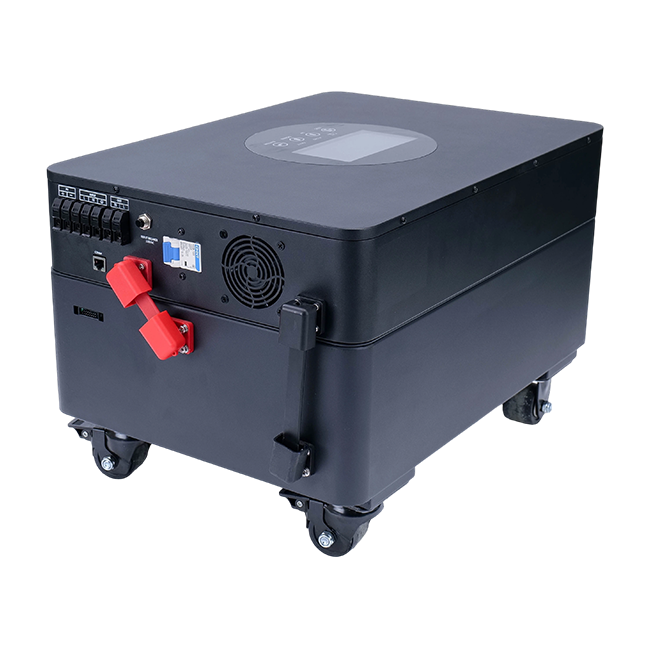

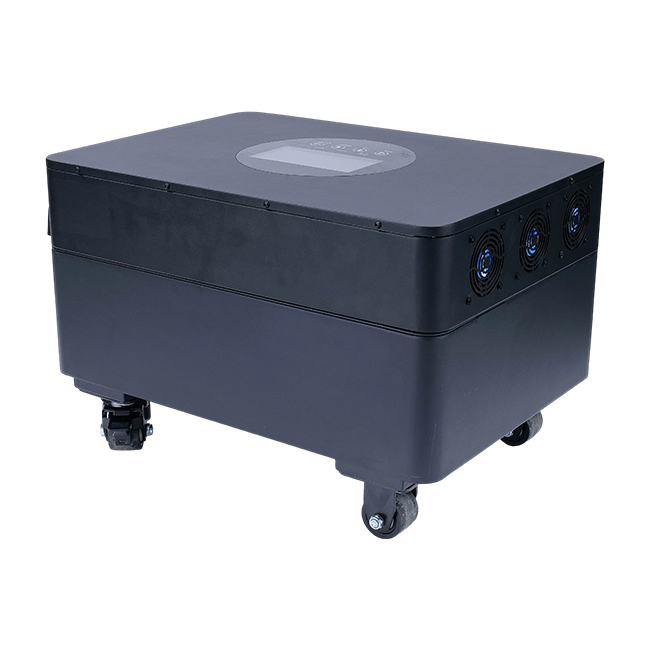

Battery Power Station Portable

High energy density battery with long lasting power, its optimized design extends power duration while keeping devices compact, ideal for outdoor camping, emergency backup, and portable power applications.
