Drone Battery Pack Solutions for UAV, FPV & RC

YATTOX supplies drone battery packs for UAV, FPV and RC applications, with configurable voltage, capacity, discharge rate, pack dimensions and connectors for OEM projects.

Common Challenges

Why Generic Batteries Hold Your Drone Back?

Drones require batteries that balance weight, capacity, discharge current and voltage stability. A mismatched battery pack can limit flight time, cause voltage sag under load or fail to meet the aircraft's power requirements. These factors are especially important for high-capacity UAV applications.

How You Can Benefit?

Light Frame, Big Endurance

Steady From Start to Finish

Fly Confident in Any Climate

Drone Battery Types for UAV, FPV & RC

YATTOX provides LiPo, Li-ion and semi-solid battery solutions for UAV, FPV and RC platforms, with configurable voltage, capacity, discharge performance, pack dimensions and connectors for OEM projects.

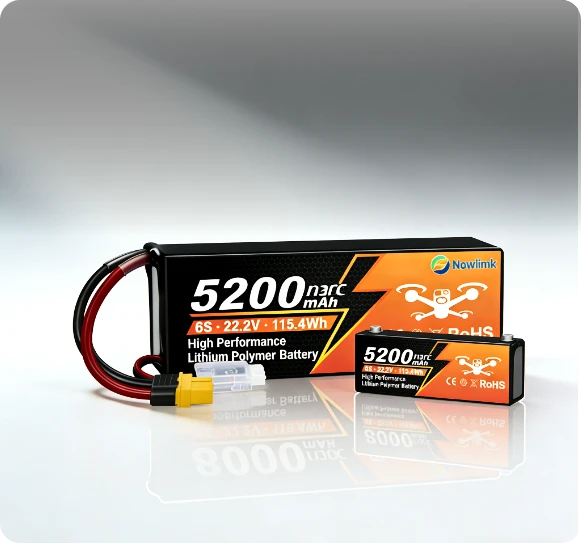

FPV Battery

High C-rate FPV packs deliver instant punch, tight voltage control and consistent feel, so every dive, split-S and recovery moves exactly the way you expect.

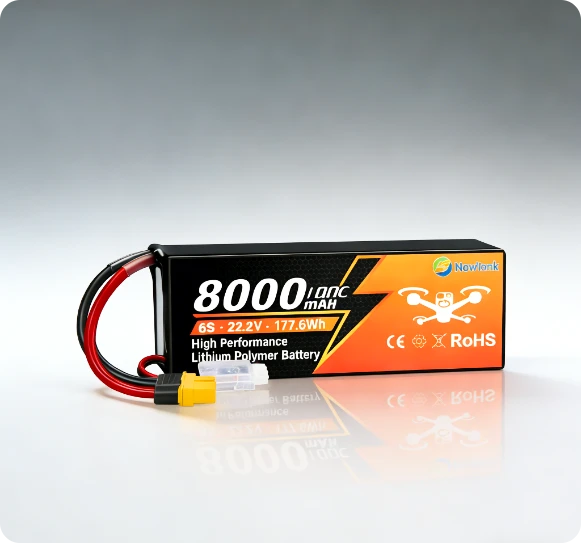

UAV Batteries

High energy density and reinforced safety design help industrial and mapping UAVs fly longer, cover more ground and keep output stable throughout demanding missions.

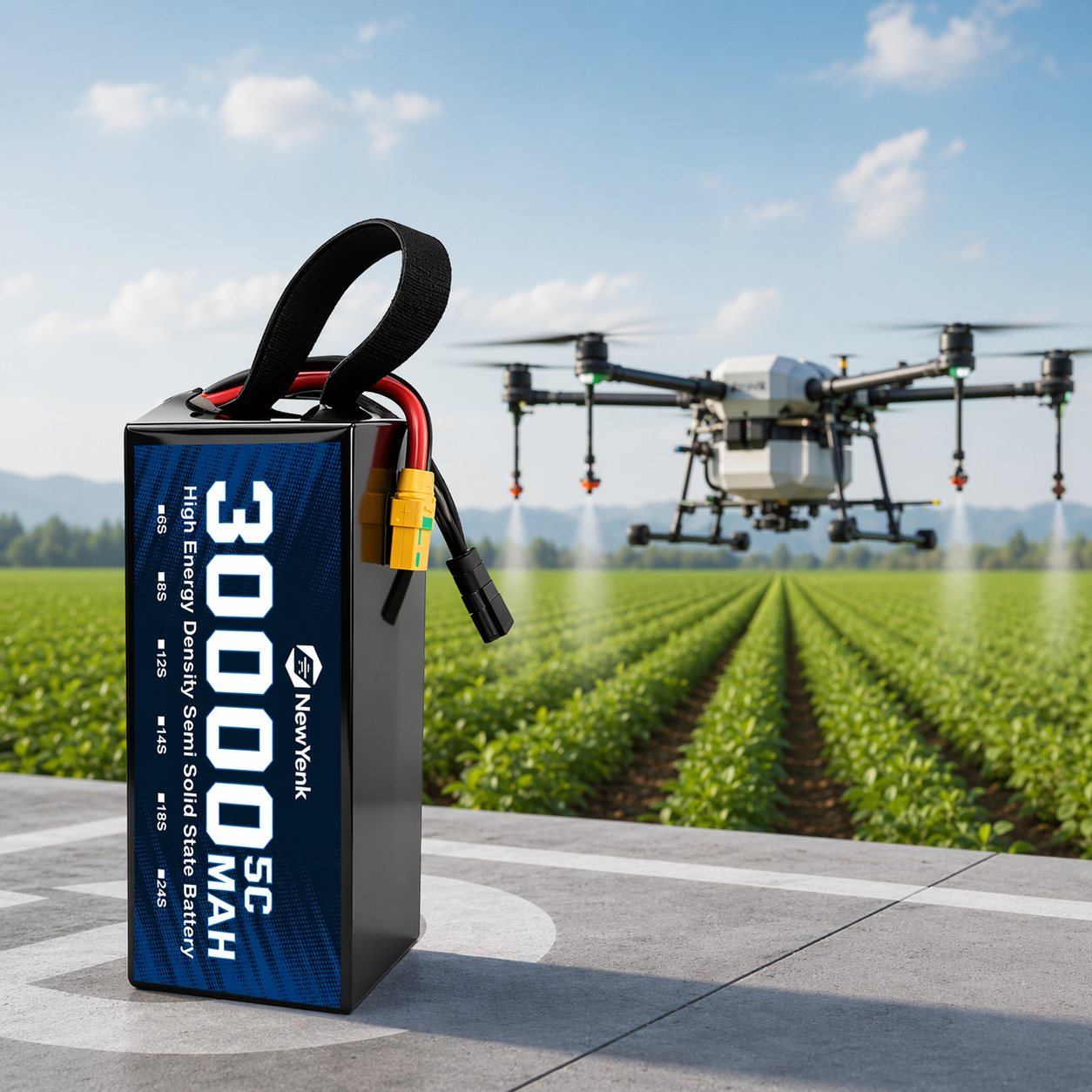

Semi Solid State Batteries

Our semi solid state batteries offer higher capacity, longer cycle life, and improved thermal stability, while reducing the risk of electrolyte leakage and thermal runaway. They are ideal for UAVs, electric vehicles, and advanced energy storage systems requiring lightweight design, high energy output, and enhanced safety.

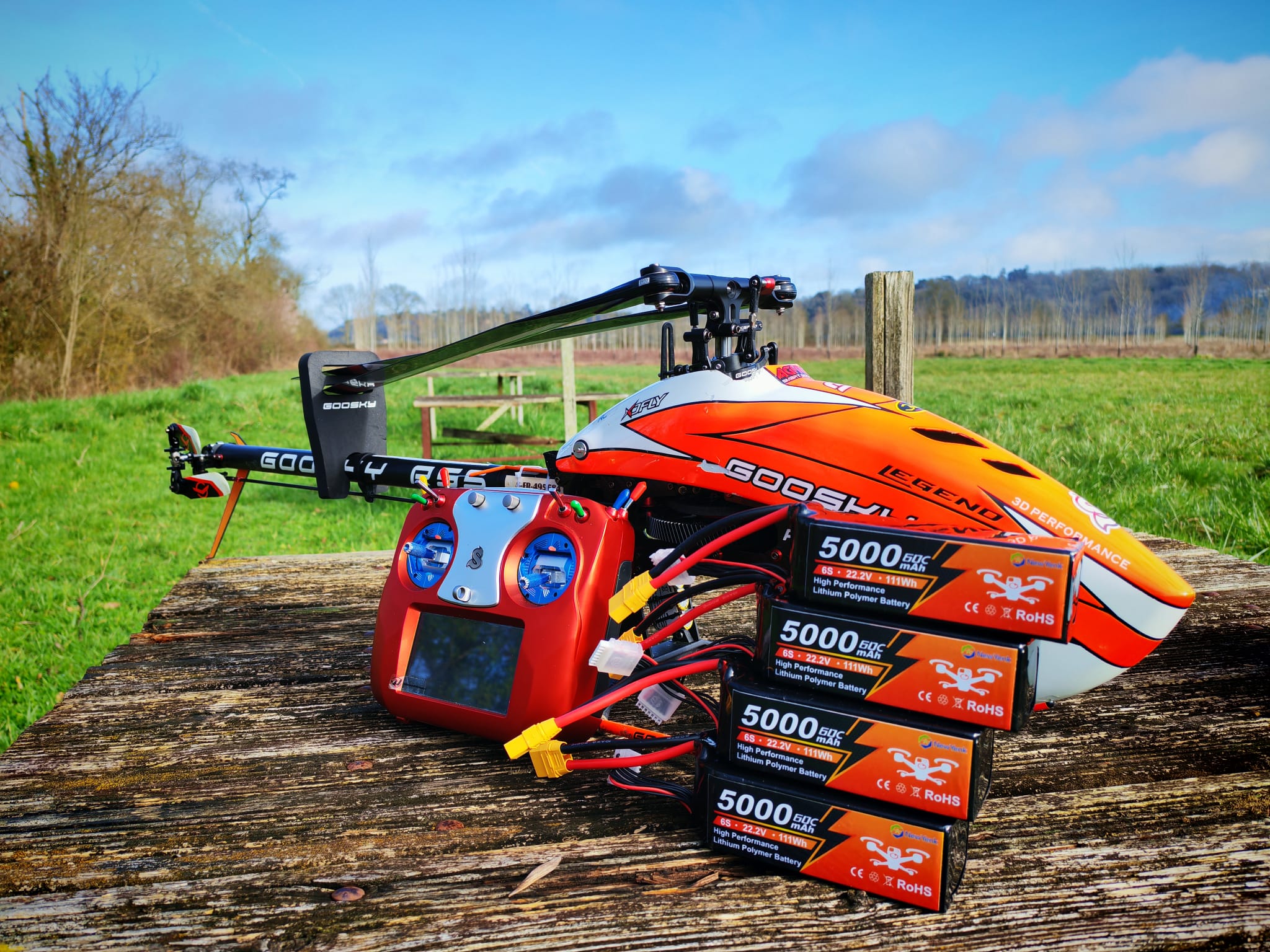

RC Battery

Yattox manufactures high-performance RC LiPo batteries for RC cars, racing buggies, airplanes, helicopters and other RC platforms, with custom voltage, capacity, discharge, size and connector options for OEM/ODM projects.

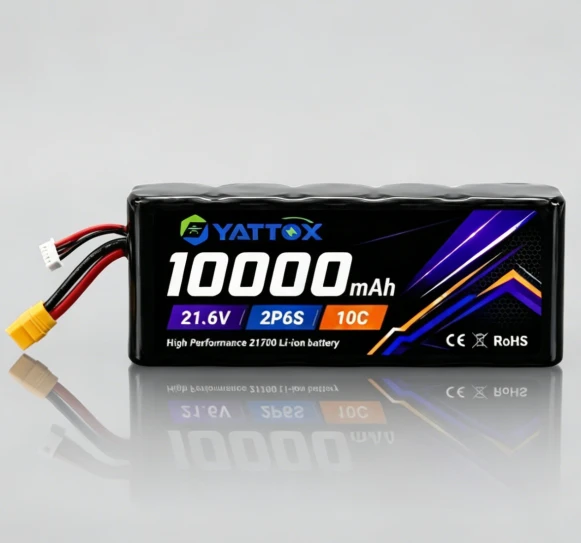

21700 Li-ion Battery Series

Custom Voltage, Capacity, Connector and Battery Pack Design Available

Performance Highlights

High C-Rate

High-discharge LiPo batteries deliver the current required for rapid acceleration, steep climbs and high-load flight operations.

Technical Basis
Selected YATTOX models offer discharge ratings up to 120C. Cell matching and pack configuration help support high-current output, while continuous and peak current limits depend on the specific model.

Application Value
Provides high-current battery options for FPV racing, rapid throttle changes and UAV operations with demanding power loads.

High Energy Density

High-energy-density battery solutions provide more stored energy per unit of weight, helping UAV designers balance energy capacity, payload and flight endurance.

Technical Basis
YATTOX offers high-capacity LiPo and semi-solid battery solutions. Energy density depends on cell chemistry and electrode design, while complete pack weight also includes wiring, connectors and structural components.

Application Value
Helps UAV projects evaluate higher energy capacity without relying on larger or heavier packs alone, particularly for mapping, inspection and other endurance-focused missions.

Stable Voltage

Consistent cell characteristics and controlled internal resistance help limit voltage sag when drone power demand increases.

Technical Basis
YATTOX's battery manufacturing processes include electrode coating, cell assembly and battery pack integration. Cell consistency and internal resistance are important factors in pack matching and discharge performance.

Application Value
Supports more predictable power delivery during takeoff, climbing and other changing-load flight conditions.

Reliable in Harsh Environments

Battery selection for demanding environments requires suitable cell chemistry, discharge capability and temperature specifications.

Technical Basis
YATTOX offers battery configuration options for different operating requirements. Temperature suitability must be matched to the selected model, with charging, discharging and storage limits assessed separately.

Application Value
Helps OEM customers select batteries for UAV operations where ambient temperature, power demand and duty cycle may vary.

Application Scenarios

Where Our Batteries for Drones Make a Difference

Different drone missions require different balances of discharge power, usable energy, battery weight and installation space. YATTOX offers LiPo, Li-ion and semi-solid battery options for various UAV platforms and operating requirements.

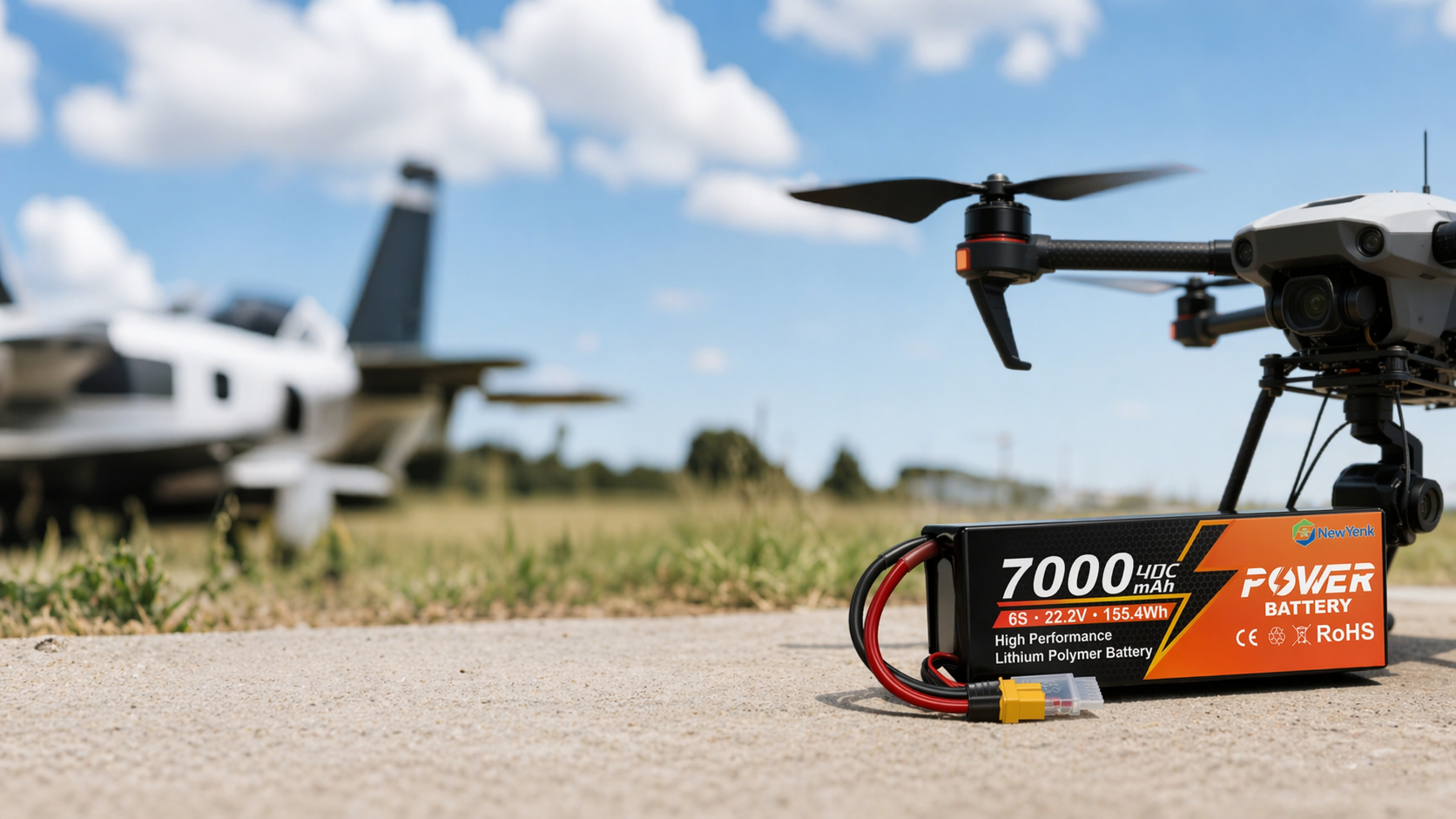

Fixed-Wing & Multirotor Drones

Fixed-wing drones need sufficient usable energy for sustained cruising, while multirotor platforms must also handle higher current demands during hovering and climbing. YATTOX supports battery selection based on aircraft voltage, flight profile, weight limits and available installation space.

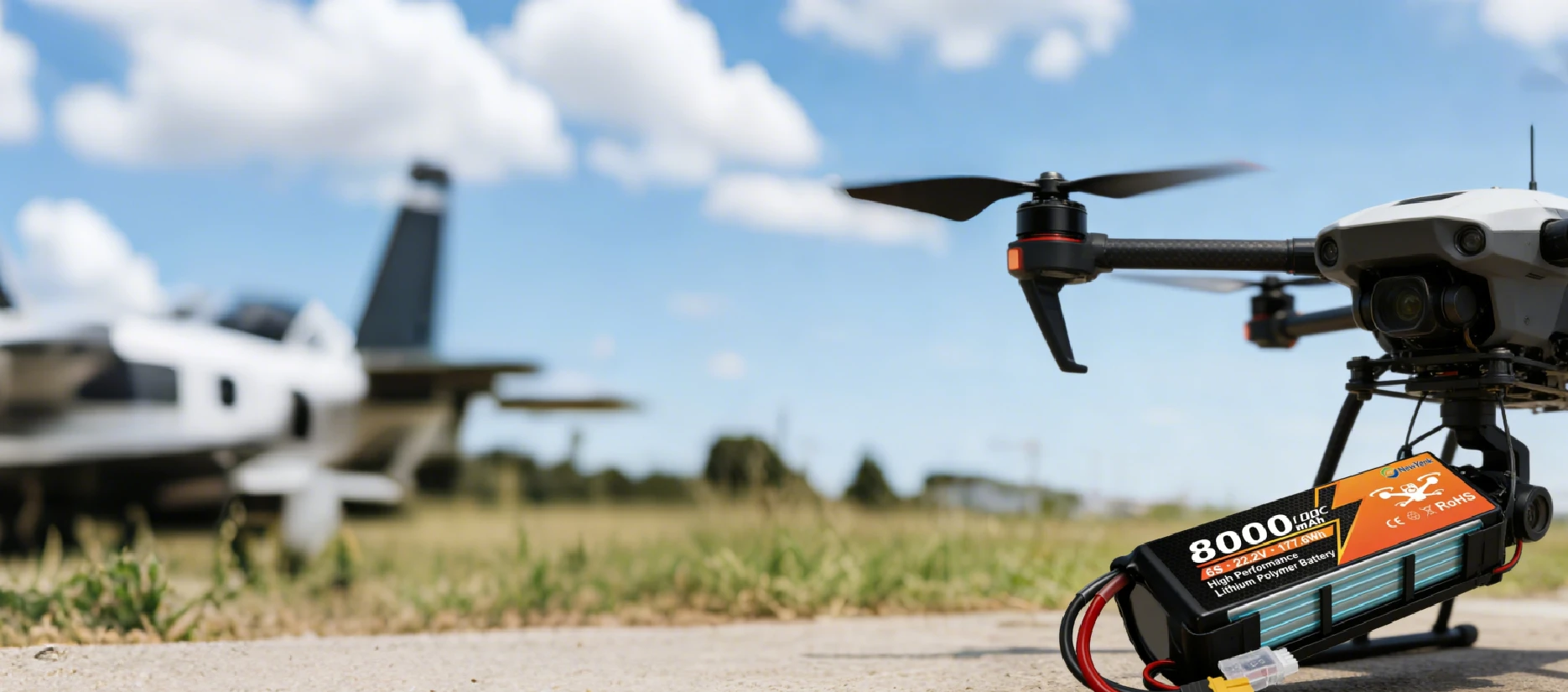

Quadcopter Drones

Repeated throttle changes, hovering and rapid maneuvers place varying loads on a quadcopter battery. YATTOX offers high-discharge LiPo options, with capacity, pack weight and connector configurations selected to match the aircraft's power system and operating requirements.

Logistics & Delivery Drones

Carrying cargo increases the power required for takeoff and climbing. Battery selection must consider loaded aircraft weight, continuous and peak current, delivery distance and sufficient energy reserve for the return flight. YATTOX's high-capacity LiPo and semi-solid battery options provide configurations for evaluating these requirements.

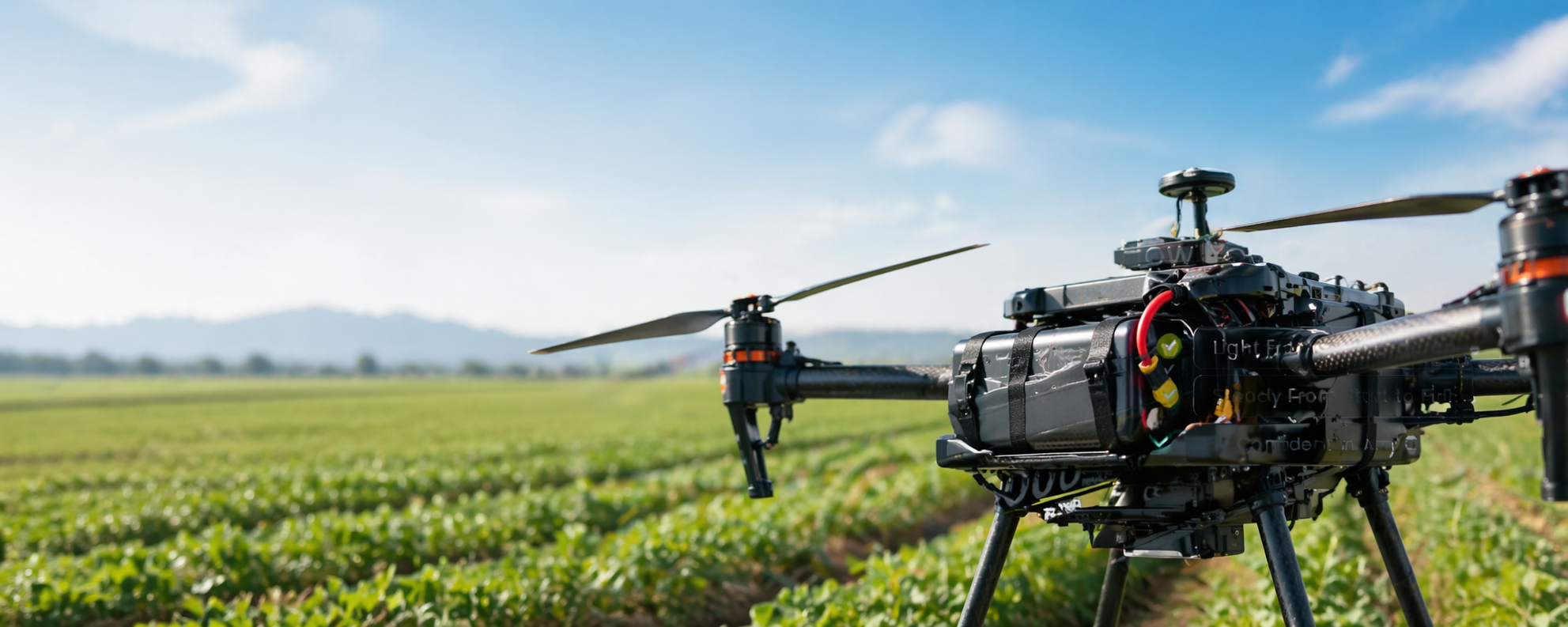

Agricultural Drones

Spraying UAVs operate through repeated takeoffs and landings as tank weight changes during each flight. High-current output is important during loaded takeoff, while battery capacity, temperature limits and pack replacement requirements affect field operations.

YATTOX offers high-capacity UAV battery configurations, including selected semi-solid models with multiple voltage and connector options, for agricultural drone projects.

Aerial Photography Drones

For aerial photography and cinematography, a heavier battery does not always provide more useful flight time. Camera payload, gimbal equipment and total takeoff weight all influence the available endurance.

YATTOX offers LiPo and other battery configurations to help balance usable energy, aircraft weight and the power demands of hovering, climbing and filming maneuvers.

Explore Industrial UAV Li-ion Applications →

Custom Drone Battery Pack Options

Key Custom Metrics to Consider

Capacity

Voltage

Discharge Rate

Battery Life

Compatibility

We offer a range of capacity options tailored to different airframes and mission profiles, carefully balancing energy and weight so that higher capacity does not come at the expense of practical endurance or flight performance.

Application Capacity Examples

Aerial Photography: 1500~5200 mAh
Competition Performance: 1300~1550 mAh
Agricultural Drone: 8000~60000 mAh
RC Helicopter: 2200~5200mAh
Semi-solid Battery: 16000~90000mAh

Capacity, typically expressed in mAh, is a primary factor determining the potential flight time per charge.

6S UAV Battery Examples

YATTOX's 22.2V UAV LiPo range includes a 22,000mAh pack with 488.4Wh nominal energy and a 29,500mAh pack with 654.9Wh. Their listed pack weights, dimensions and connectors differ, so capacity should be evaluated alongside aircraft weight limits, mounting space and electrical requirements.

View UAV Battery Configurations →

YATTOX offers different battery voltage configurations for drone and UAV platforms. Its listed 6S LiPo UAV battery series uses a nominal voltage of 22.2V, while other voltage options depend on cell chemistry and series configuration.

For OEM projects, battery voltage must match the aircraft's permitted operating range, motor and ESC requirements, charger settings and power connections.

How Battery Voltage Is Defined

Battery voltage is defined by the number of cells in series (e.g. 3S, 4S, 6S, 12S) and is critical to motor power output and system compatibility.

Select the discharge capability according to the drone's continuous and peak current requirements. For custom battery packs, current limits should be checked against the selected cells, pack configuration, wiring and connectors under the intended operating conditions.

C-Rate Reference

Up to 120C (selected models). The discharge rate (C-rate) indicates how much current a pack can safely deliver and is a key parameter for high-maneuverability flight, rapid climbs and heavy-load operation.

Battery service life depends on cell consistency, depth of discharge, operating temperature and charging conditions. Differences in cell capacity and internal resistance can affect pack balance and long-term performance.

YATTOX's battery production and quality-control processes include cell matching and internal resistance checks. For custom UAV projects, cycle-life requirements should be evaluated according to the selected cell chemistry, discharge conditions and intended operating environment.

Advanced Technology

High-speed continuous slurry mixing
Real-time high-precision coating monitoring
Micron-level precision lamination
Hot-press formation for uniform SEI film

We offer multiple plug connector options so your drone battery and charger can plug straight into your UAV, FPV or RC system without extra adapters. Available connectors with cable length and wire gauge customizable on request. For custom battery projects, please provide the connector type, cable specifications, available installation space and charger interface requirements for compatibility review.

Plug Connectors

Connector type, cable length and wire gauge can be matched to your UAV, FPV or RC system and charger interface.

Request a Custom Drone Battery Quote

Share your drone type, required voltage, capacity or nominal energy, continuous and peak current, pack weight and size limits, connector requirements and estimated order quantity.

Need battery compliance documents? Review YATTOX's Certifications & Compliance page for management system certifications and available product testing and transportation documentation.

Request a Custom Quote

What Drone Battery Users Say

User feedback on FPV battery power delivery, frame fit and throttle response.

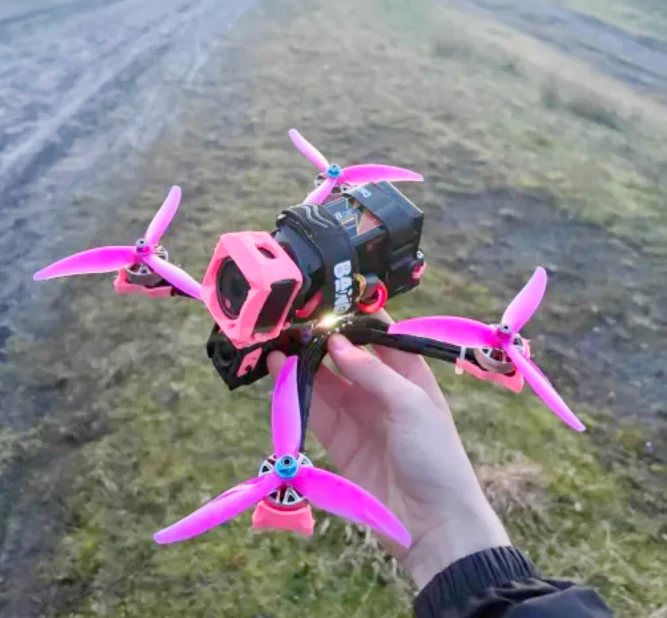

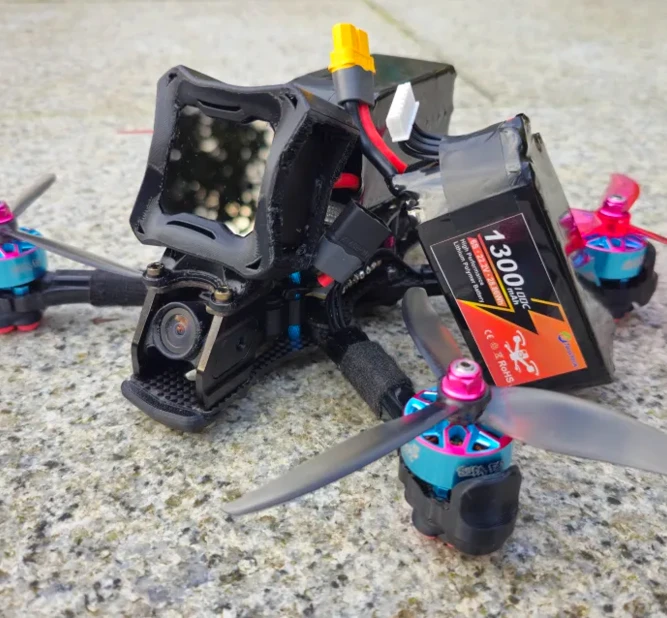

Verified review from Samuel arias, USA: High performance without the crazy price - 6S 1300mAh flight battery

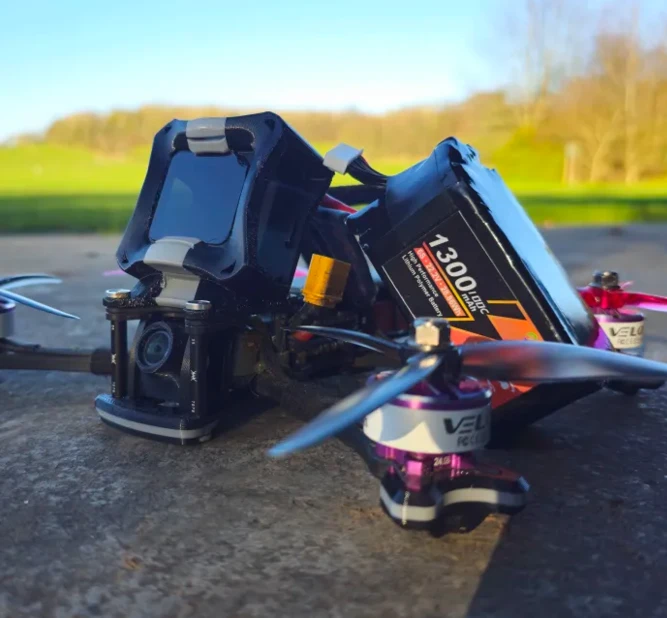

Verified reviews from Oliver and Luis, UK: FPV battery frame fit and throttle response
