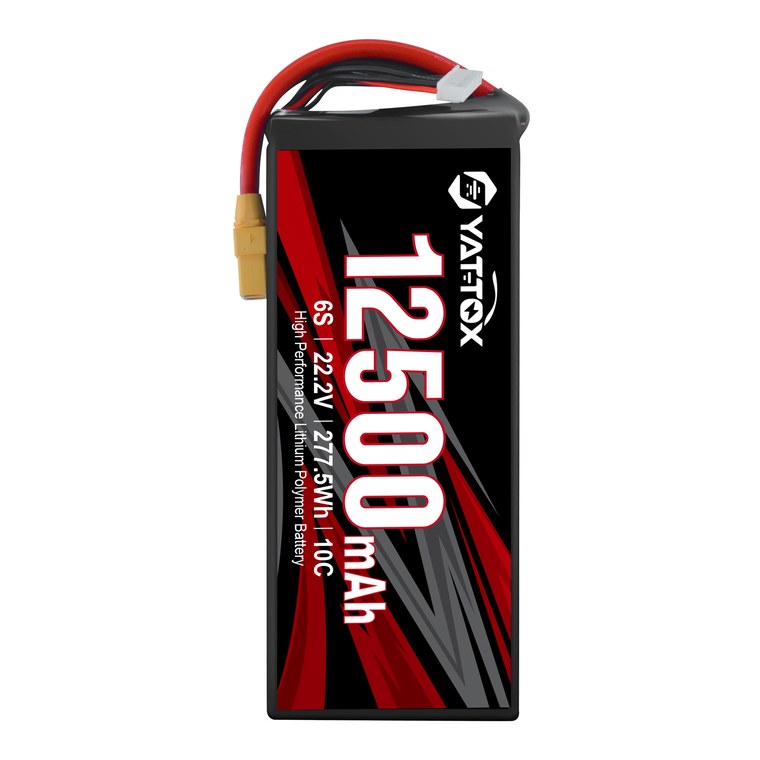

6S 12500mAh 22.2V LiPo Battery
A 6S, 22.2V YATTOX UAV LiPo battery with 12,500mAh nominal capacity, 277.5Wh nominal energy and a 10C label rating, for power-system compatibility evaluation.
·Configuration: 6S
·Nominal Voltage: 22.2V
·Capacity: 12,500mAh
·Nominal Energy: 277.5Wh
·Discharge Rating: 10C (label rating)
12500mAh 6S LiPo Battery Overview
12500mAh 6S LiPo Battery Overview
This YATTOX UAV LiPo battery uses a 6S electrical configuration with 22.2V nominal voltage, 12.5Ah capacity and 277.5Wh nominal stored energy. Confirm the aircraft’s current demand, available installation space and connector compatibility before selection.
22.2V Configuration for UAV Systems
The 6S lithium polymer configuration provides 22.2V nominal output. Select a battery for UAV integration only after checking the full operating-voltage range of the aircraft, ESCs and charger.
277.5Wh Nominal Energy
The 12,500mAh capacity corresponds to 277.5Wh at the stated nominal voltage. Actual usable energy depends on load, cutoff limits, operating temperature and system configuration.
10C Label Rating
The product is labeled 10C. Continuous-current capability, peak-current limits and test conditions should be verified for the intended power system rather than inferred from the rating alone.
Electrical and Physical Specifications
Compare the labeled electrical specifications of this UAV battery pack and check weight, dimensions and connector requirements separately before confirming its suitability for installation.
Weight, dimensions and connector are not published for this model until confirmed product data is available.
Check Compatibility with Your UAV
Battery compatibility depends on more than matching capacity. Verify the aircraft’s operating voltage, sustained and peak current demand, available mounting space, connector polarity and charger settings against the pack’s confirmed specifications.
Voltage and Power System
Confirm that the aircraft and electronics support a 6S LiPo battery across the full operating voltage range, not only at 22.2V nominal.
Discharge and Load Profile
Compare measured or specified continuous and transient current demand with the battery’s verified discharge limits, wiring and connectors.
Mechanical Fit and Connection
Review the available compartment dimensions, mounting method, connector type and polarity before integration.
Compare 6S LiPo Battery Capacities
The YATTOX UAV battery packs shown below share a 22.2V nominal configuration but differ in capacity and stored energy. Compare these documented values with the aircraft’s weight limit, current profile and required operating time.
Battery Configuration and Ordering Information
For this UAV battery pack, share the aircraft voltage range, normal and peak load current, installation space, required connector and quantity when requesting technical guidance or a quotation.
Information to Include in Your Inquiry
Aircraft / power-system model
Operating-voltage range
Continuous and peak current demand
Available battery space
Connector and polarity requirements
Target quantity
Expected operating conditions
6S 12500mAh LiPo Battery FAQs
Answers to common electrical, sizing and purchasing questions for the 22.2V, 277.5Wh battery configuration.
What is the nominal voltage of this 12500mAh battery?
It uses a 6S lithium polymer configuration with a nominal voltage of 22.2V. Confirm the complete operating-voltage requirements of your UAV before use.
How much nominal energy does the pack provide?
The label specifies 12,500mAh and 277.5Wh. Actual usable energy varies with discharge conditions and the system’s operating limits.
Does a 10C rating guarantee a specific continuous current?
No. The 10C figure is a label rating. Request confirmed continuous-current specifications and applicable test conditions before using it to size the UAV power system.
Can this battery be installed in any 6S UAV?
No. Matching cell count alone is insufficient. Verify current demand, pack dimensions, mounting method, connector compatibility, polarity and charger requirements.
How is this model different from the 15000mAh 6S pack?
Both are listed as 22.2V 6S options, but the 12,500mAh model has 277.5Wh nominal energy, compared with 333Wh for the 15,000mAh option. Other physical and operating differences should be checked against each model’s specifications.
What information should I send when requesting a quote?
Share the aircraft or power-system requirements, voltage range, load current, available space, connector requirements and quantity. These details help identify an appropriate configuration.
Explore More 6S LiPo Battery Options
Compare neighboring 6S capacity options or return to the UAV Battery range to review configurations for different energy and integration requirements.
6S 15,000mAh LiPo Battery
22.2V nominal, 333Wh stored energy — a larger 6S option for longer flight-time requirements.

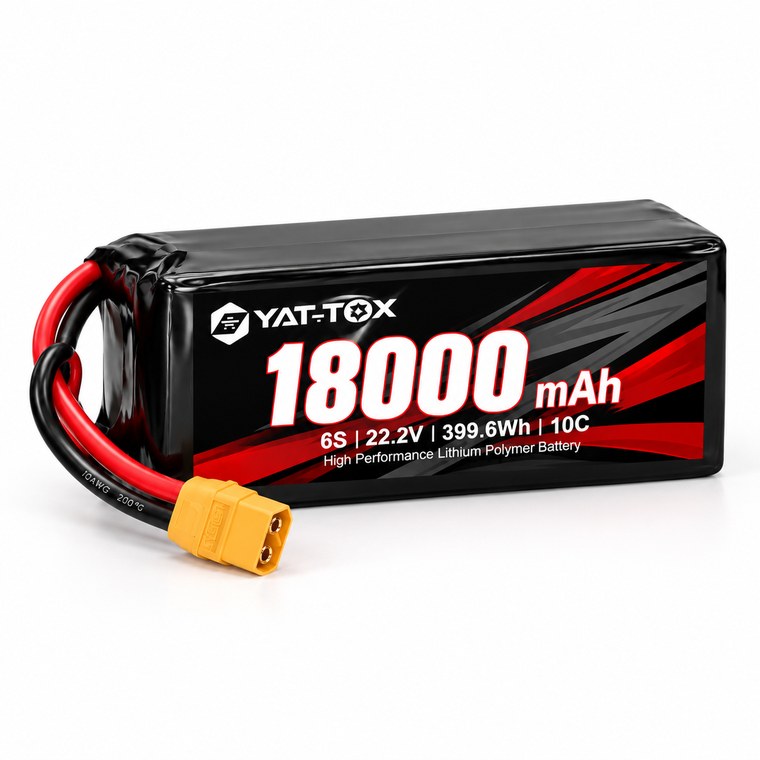

6S 18,000mAh LiPo Battery
22.2V nominal, 399.6Wh stored energy — extends operating windows for higher-energy UAV platforms.

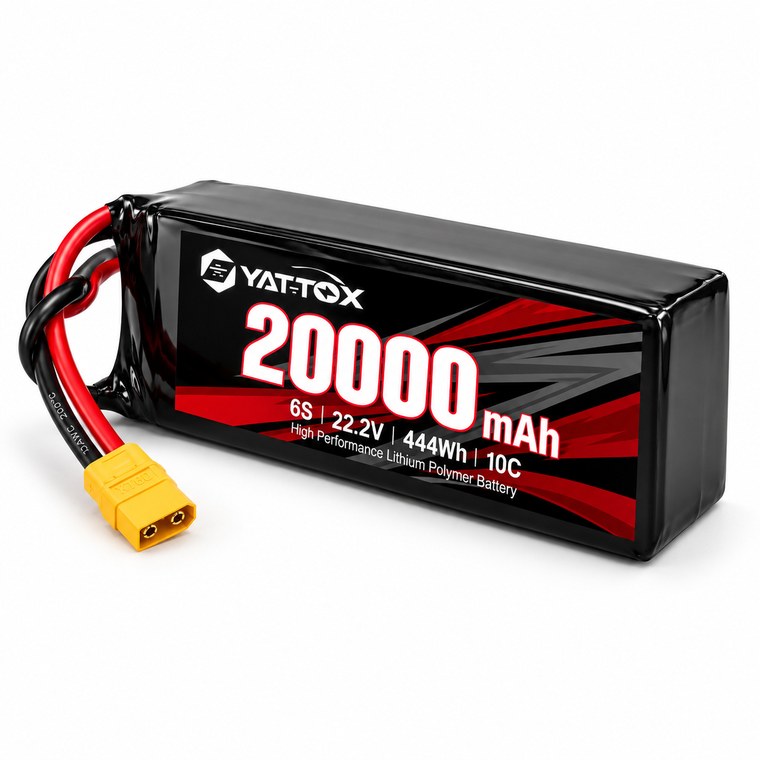

6S 20,000mAh LiPo Battery
22.2V nominal, 444Wh stored energy — the highest-capacity 6S option for maximum endurance.
Return to UAV Battery Packs for the full 6S range.
Related Products

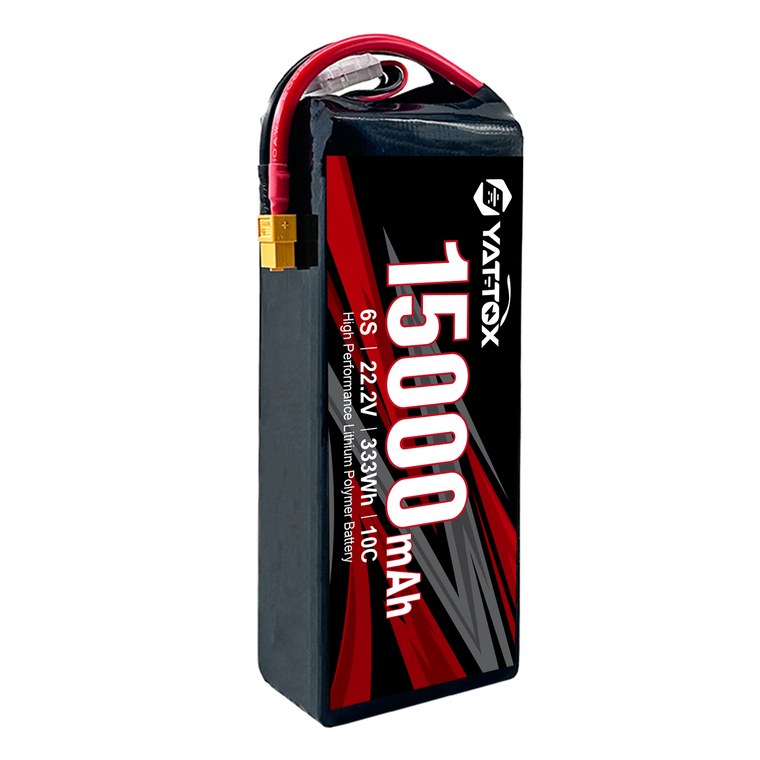

6S 15000mAh 22.2V LiPo Battery
The YATTOX 6S 15,000mAh LiPo pack offers 333Wh of nominal energy at 22.2V. For UAV installations, assess this 15Ah option against aircraft power demand, allowable pack weight and available mounting space before selecting it for a mission.
·Configuration: 6S
·Nominal Voltage: 22.2V
·Capacity: 15,000mAh
·Nominal Energy: 333Wh
·Discharge Rating: 10C (label rating)
