6S 15000mAh 22.2V LiPo Battery
The YATTOX 6S 15,000mAh LiPo pack offers 333Wh of nominal energy at 22.2V. For UAV installations, assess this 15Ah option against aircraft power demand, allowable pack weight and available mounting space before selecting it for a mission.
·Configuration: 6S
·Nominal Voltage: 22.2V
·Capacity: 15,000mAh
·Nominal Energy: 333Wh
·Discharge Rating: 10C (label rating)
What the 15Ah Capacity Means for Your UAV
What the 15Ah Capacity Means for Your UAV
At 22.2V nominal, 15,000mAh represents 333Wh of nominal stored energy. That is 55.5Wh more than the 12,500mAh option in the same 6S range, but flight-time benefit depends on pack weight, propulsion efficiency and the actual mission load.
Energy Budget Without a Flight-Time Promise
Use 333Wh as a nominal comparison point, not as the energy guaranteed at the motor. Available energy varies with discharge limits, temperature and the aircraft power profile.
Capacity Must Be Checked Against Pack Mass
An increase in capacity can also change battery mass and dimensions. Review the completed pack data and maximum takeoff-weight allowance before estimating flight endurance.
15000mAh LiPo Battery Specifications
This 6S configuration is rated at 22.2V nominal, 15,000mAh and 333Wh, with a 10C marking on the product label. Use these labeled values for preliminary comparison; confirm the final supplied unit’s mechanical details and current limits before integration.
Weight, dimensions and connector are not published for this model until confirmed product data is available.
UAV LiPo Battery Compatibility Checks
A 6S configuration does not automatically guarantee installation compatibility. Check the aircraft voltage limits, expected load current, connector and wiring ratings, charging setup, allowable weight and mounting clearance before using this LiPo pack.
Match the Full Voltage Range
Check that the motors, ESCs, power distribution and charger are intended for a six-cell LiPo pack throughout its charging and discharge range. Do not treat 22.2V as a fixed operating voltage.
Check Current Delivery and Connectors
The 10C marking is a product-label rating. Request the confirmed continuous and transient current limits and verify the complete connector-and-cable path against expected load demand.
Verify Physical Integration
Before installation, confirm the actual pack weight, external dimensions, securing method and connector polarity of the supplied version against the available aircraft space.
15Ah vs. Other 6S LiPo Battery Capacities
Within the 6S range, the 15Ah battery provides 333Wh, sitting between the 12.5Ah pack at 277.5Wh and the 18Ah pack at 399.6Wh. Compare this difference alongside each model’s mounting envelope and allowable weight rather than assuming energy gains translate directly into flight time.
Ordering the 15Ah UAV Battery Pack
When evaluating this 15Ah configuration for an aircraft, provide the working voltage limits, measured continuous and peak current, available battery dimensions, weight allowance, connector and polarity requirements, charging setup and planned quantity.
Information to Send with Your Inquiry
Aircraft model or system drawing
Controller and ESC voltage limits
Measured current profile
Maximum battery weight
Battery compartment dimensions
Required connector and polarity
Charging equipment
Intended order quantity
6S 15000mAh LiPo Battery FAQs
These questions focus on capacity trade-offs, power compatibility and practical procurement checks for the 333Wh 6S configuration.
Will a 15000mAh pack deliver 20% more flight time than a 12500mAh pack?
Not necessarily. Its nominal energy is 333Wh versus 277.5Wh for the 12.5Ah model, a 20% increase. Actual flight time also depends on the weight of the installed battery, flight conditions, propulsion efficiency and usable energy limits.
Does matching 6S mean this 15Ah battery fits any 6S drone?
No. Confirm the aircraft’s full operating-voltage range, load-current limits, allowable takeoff weight, compartment clearance, connector and polarity before installation.
What does the 10C marking tell me about current delivery?
It is the discharge rating printed on the pack. Do not treat it as an independently validated continuous-current test result. Request the applicable discharge-current specifications and test conditions for your project.
Can I estimate UAV flight time from 333Wh alone?
No. A useful estimate also needs an aircraft power-consumption profile and assumptions about usable energy and reserve. Bench or flight measurements under the intended payload and mission are more informative than a capacity-only calculation.
Should I select the 15Ah or the 18Ah 6S version?
The 18Ah model has 399.6Wh nominal energy versus 333Wh for this version. The choice should follow pack weight, available space, current demand and your aircraft’s energy budget; greater nominal Wh alone does not establish the best fit.
Which information is needed to evaluate a connector or pack-fit requirement?
Share the existing mating connector, polarity, cable/current requirements, battery bay dimensions, mounting method and acceptable pack weight. The final supplied connector and mechanical configuration should be confirmed before purchase.
Continue Comparing 6S LiPo Configurations
To assess another capacity in the same six-cell range, review the 12.5Ah and 18Ah versions against your available space and operating current. The broader UAV Battery category provides additional pack options and product details.
6S 12,500mAh LiPo Battery
22.2V nominal, 277.5Wh stored energy — the lower-capacity 6S option in this range.
6S 18,000mAh LiPo Battery
22.2V nominal, 399.6Wh stored energy — a higher-capacity 6S option for longer endurance.
6S 20,000mAh LiPo Battery
22.2V nominal, 444Wh stored energy — the highest-capacity 6S option for maximum flight time.
Return to UAV Battery Packs for the full 6S range.
Provide your aircraft voltage, current and mounting requirements for a configuration discussion.
Related Products

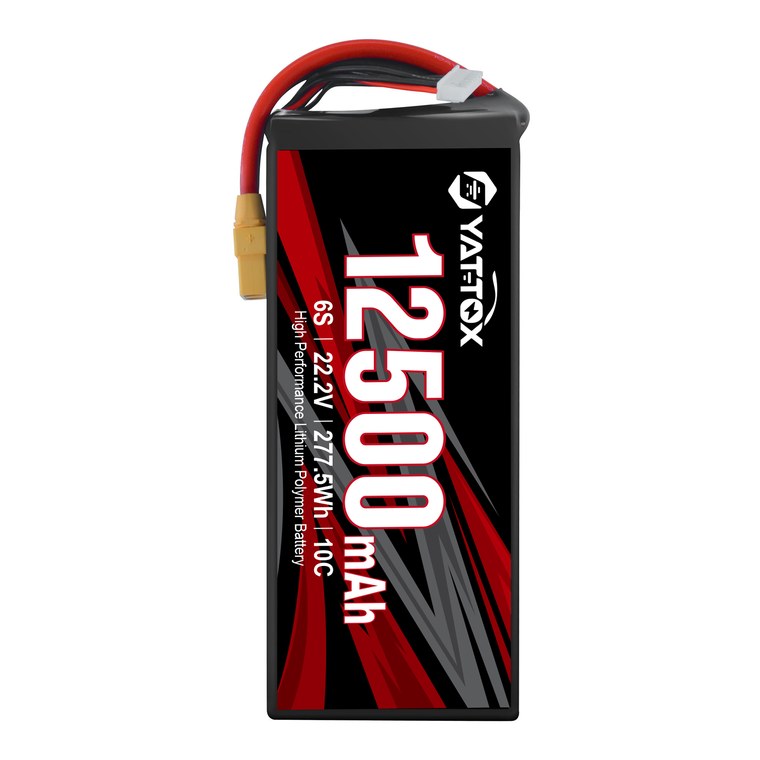

6S 12500mAh 22.2V LiPo Battery
